Allows a bundle of tubes to be loaded using a bridge crane or forklift truck, thanks to its convenient access. Keeps the surface of the pipes intact, protecting even the most delicate pipes from scratches.
Available in two lengths: 6.5 m and 8.6 m.
From standard to special profiles in an instant
Extended chains allow you to quickly switch from a bundle of tubes to loading special profiles.
Great flexibility for your production, thanks to the convenient system that allows you to process both special profiles and heavy profiles.
Optimal grip for every tube
You will always have the optimal configuration for both light and heavy tubes: the spindle adjusts automatically to preserve the quality of the material.
Start your production easily
Start your production right away! Prepare one tube to be cut while another is already being processed. You can change production without wasting time, taking advantage of the machine's automatic adjustments.
Easy to use and high-performance.
Three programmable unloading positions
It will be easy for you to remove the machined and separated parts. Up to three different unloading positions, at the front or rear of the machine, help you separate the finished parts according to their length.
Solid, efficient, and high-performance support
The unloading platform supports the workpiece at all times, ensuring excellent performance in terms of quality and speed.
Scraps separated from production
Scraps are evacuated to two different areas of the machine, automatically separating production from scraps without stopping the machine.

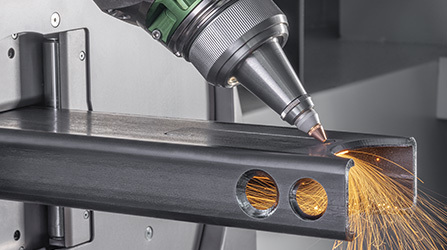

Tube Cutter: high-performance cutting
High-performance, consistent quality with the autofocus cutting head specifically developed for tube processing by BLM GROUP. The tapered design allows you to cut concaved special shaped profiles with accuracy and repeatability.
Maintenance only when needed
Thanks to the sensorized cutting head, the condition of the optics is continuously and automatically monitored to inform the operator when the slide or lens needs maintenance.
Rivet insertion unit
The automatic insertion unit for threaded inserts on workpieces expands the possibilities of the laser cutting system and simplifies production. Inserts from M4 to M12 (depending on the tooling) are taken from a continuous feeding system and applied to the tube with dedicated pliers.
Reduce costs, not quality
With compressed air cutting, you save on the installation costs of a nitrogen system as an assist gas. Useful when cutting aluminum or steel.
Active Tools: smart functions to improve your productivity
Let Active Tools handle the adjustments for you
Optimal parameters
Active Speed
Cutting parameters are adapted according to the actual cutting speed, at any time during machining.
High precision
Active Scan
This function makes the necessary corrections to the part program to have the same accuracy even on twisted or deformed tubes.
Welding position
Active Weld
Active Weld detects the position of the weld seam on the outside or inside and rotates the tube with the seam in the programmed position.
LT6 Applications
Save time and material
Using the dynamic compaction (nesting) function, the LT6 sets the sequence of the parts to be cut along the tube to minimize the end-of-bar scrap, making unloading operations easier and faster.
Quality outside and inside
Avoid needing to clean inside the tube after laser cutting. Activated at any time without having to retool the machine, the tube cleaner device is inserted through a suction probe into the tube and collects waste and fumes generated during processing.
Choose the safety for your job
LT6 is Class 1 laser system, built in compliance with the highest safety standards and CE regulations.
The special safety-glass and sealed cutting area provide safe observation of the processing area during operation, while an independent safety system allows you to introduce a new tube section without interrupting production.
Integrate Lasertube and tube bender with All-In-One
When bending a laser-cut part, elongation results in the curved areas that shift the previously made geometries. BLM GROUP Lasertubes and tube bending machines automatically solve these errors by exchanging information on the mechanical characteristics of the tube and making corrections to compensate for elongation.
That's how you get perfection from the first part!
Increase your production efficiency
Prometheus provides reliable quotes and allows you to identify the best production strategy for both single parts and entire production batches.
It also allows you to manage logistics planning, monitoring and productivity analysis phases, with the possibility of integrating with your ERP.
All the systems communicate with each other and simulate the manufacturing process to support the solution of daily start-up and production changeover problems.
LT6 technical information
Laser
Source
3 kW fiber
Cutting head
Tube Cutter 3D BLM GROUP
Loading
Bundle loader
Fully automatic
Minimum loadable length
2.5 m
Maximum loadable length
6.5 – 8.5 m
Beam loading capacity
4,000 kg
Unloading
Three programmable positions, rear conveyor belt and motorized front and rear collection tables
Unloading length
3.6– 4.5 – 6.5 m
Standard machine loading 6.5 m and unloading 3.6 m
