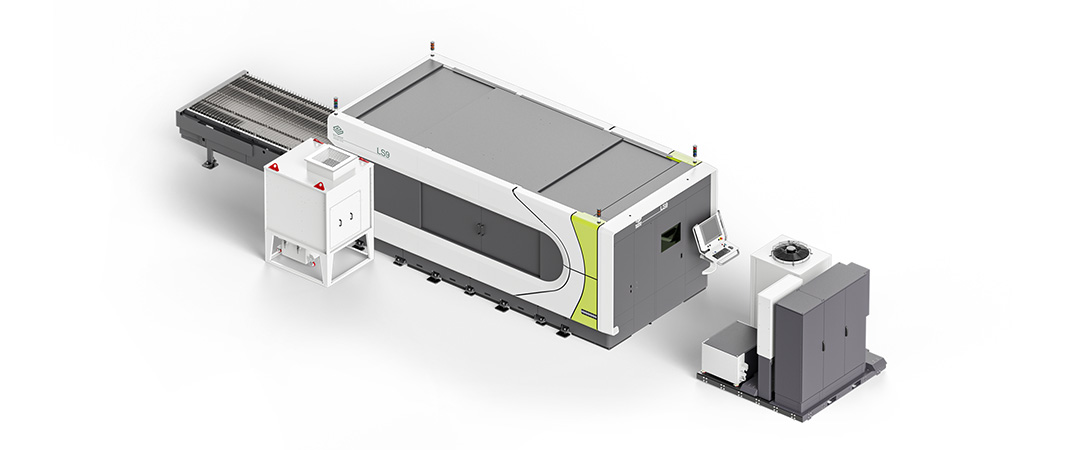

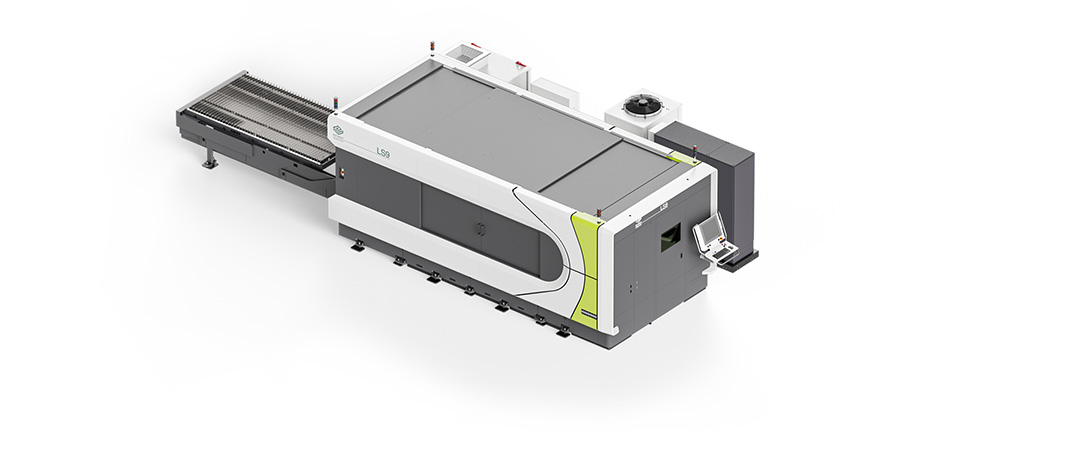

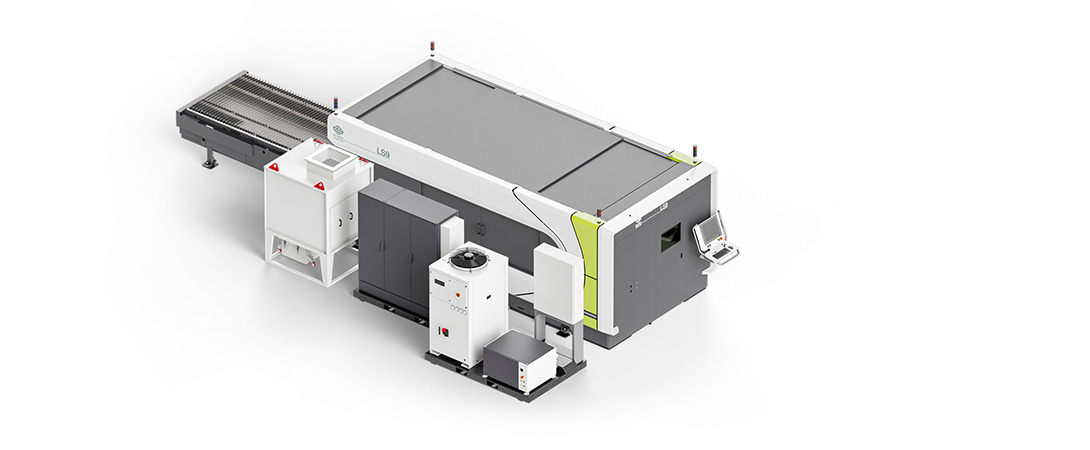

LS9

High-performance sheet metal laser cutting with linear motors

Linear motors: first-class performance

The LS9 was created to take your productivity to the next level. Linear motors on all axes ensure extremely fast dynamics, high precision and process stability.

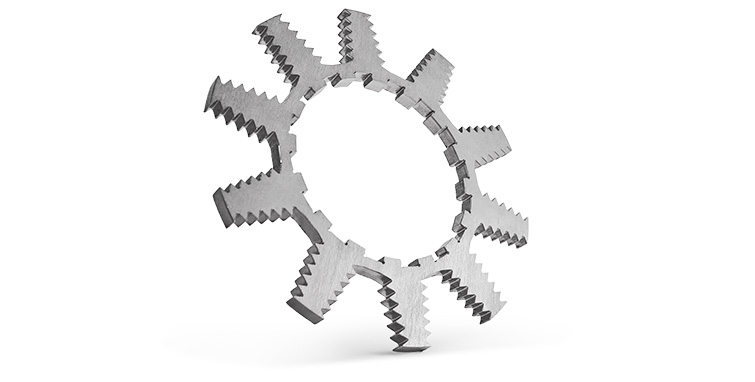

It excels even on the most complex geometries

Perform lightning-fast directional changes. Linear motors eliminate friction, while the steel base, filled with polymer concrete, ensures strength, rigidity and effective vibration absorption.

Reliability without compromise

Linear motors are protected to ensure long-lasting performance.

Aluminum bellows and slats shield the guides from cutting dust and dirt.

The sealed and pressurized encoders completely eliminate the risk of external contamination.

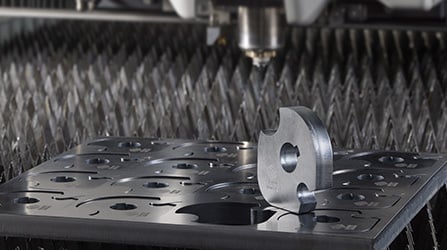

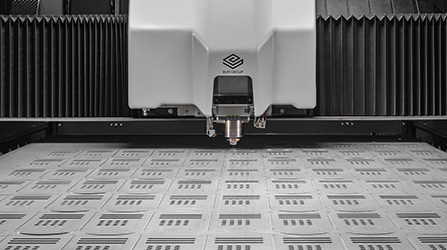

2D laser beam control for perfect edges

The machine automatically changes the diameter of the laser beam, up to the maximum power level, to offer you faster cutting on reduced thicknesses and improve quality on thick materials.

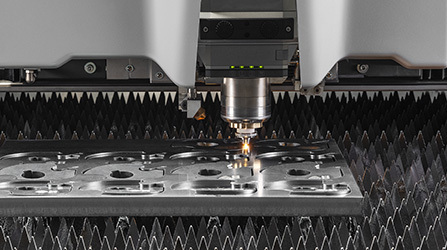

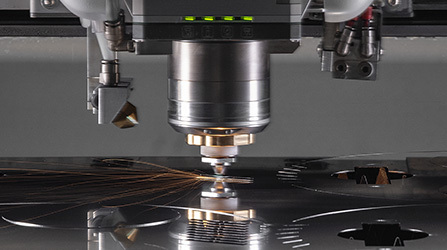

Perfect nozzles with automatic changing, centering and monitoring system

You'll just have to choose which new sheet to cut. The machine will take care of cleaning, changing, checking for nozzle wear and, when necessary, automatically verifying the correct alignment of the laser beam.

Nitrogen, oxygen, air, or gas mix? Choose what's best for you!

With air cutting you can ensure the same productivity as you would with nitrogen at a fraction of the cost and the parts are ready for painting.

Alternatively, with Gas Mix you can decide the right mix of oxygen and nitrogen to obtain the desired cutting quality and/or speed.

Scrap collection drawers

You can conveniently remove metal scrap using the special drawers located under the cutting area.

Advanced scrap management

Upon request, for intensive 24/7 production, the conveyer belts can expel the scrap to an external collection box, ensuring its extraction without ever having to turn off the laser.

Zero intervention. Shorter cycle times. Greater productivity.

Cleaner, fume-free 2D laser system

Debris suction extraction is always concentrated in the cutting area. This ensures greater energy efficiency while maintaining the same performance!

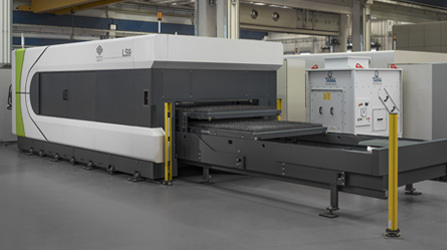

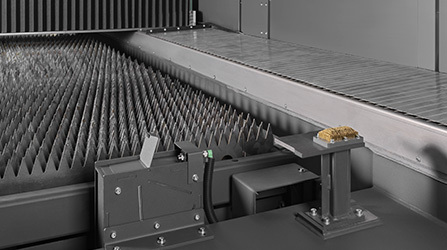

Pallet changer

It only takes you 9 seconds to remove the pallet with the finished parts from the 2D laser system and load a new sheet onto the platform.

Automated loading and unloading

Intensive processing is automatic, safe and unattended. The sheet metal loading and unloading system ensures faster cycle times and higher productivity.

Automatic feeding warehouse with pallet storage

For continuous, unattended 24/7 production, choose the compactness and ease of use of the automatic sheet selection storage system with a tower positioned beside the pallet changer – or, for more limited spaces, the compact tower that extends above the pallet changer.
