E-TURN
Free Your Design and Create Any
Bend for the Tube.
Bend for the Tube.
Simple and intelligent
No experience is needed to use E-TURN: All movements are managed by an electric axis. Set-up is automatic, and all position and power parameters are saved together with the part program.

Suited to all needs
With the E-TURN, you have a highly versatile system, for right-handed and left-handed bending, in-process fixed or variable radius, in multi-radius mode.
You can mount up to 8 tools at the same time and position the variable radius at any level.

All parts are precise and repeatable
You can always count on repeatability and geometric precision of the bent part, regardless of material imperfections. Using special programs that can be selected by the operator, ELECT compensates variations in material quality and dimensional accuracy.

Quality is power under your control
Process small diameter tubes even for tight bend radii. High-quality appearance. No waste.
The machine adapts the working parameters to compensate for elongation and springback, boosting the thrust force during the entire processing phase for maximum process control throughout your entire production cycle.

The E-TURN can load automatically
You can position the loader and/or feeder on the right or left and manage load and bending directly using the VGP3D software.
E-TURN Applications







Take no risks – choose your safety features
The pedal prevents dropping the parts at the end of the loading and unloading operations.
The two-hand activation control prevents the operator from coming into contact with moving parts.
To combine safety and efficiency, the laser scanner allows you to choose the size of the work area based on the size of the part you are working on.
The machine is provided with the CE declaration of conformity and the user and maintenance manual.

Integrate All-In-One Lasertubes and tube bending machines
Integrate All-In-One Lasertubes and tube bending machines
As a result of the bending, the elongation of the tube shifts the geometries previously cut with the laser, causing the part to be out of specification.
BLM GROUP Lasertubes and tube bending machines automatically solve these problems by exchanging information on the mechanical characteristics of the tube.
The position of the geometries to be cut is then changed to account for subsequent elongations. You will always produce laser-cut and bent parts right from the start.

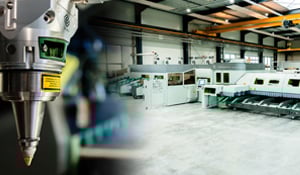

and now he makes bent pipes
and laser cut correct right away.
Find out how they achieved this
with All-in-one.
Increase your
production efficiency
Increase your
production efficiency
Protube provides reliable quotes and allows you to identify the best production strategy for both single parts and entire production batches.
It also allows you to manage logistics, planning, monitoring, and productivity analysis with the capability to integrate to your ERP.
All the systems communicate with each other and simulate the production processes to simplify the operator's work and resolve any detected problems.
E-TURN Technical Information
E-TURN 32
E-TURN 35
E-TURN 40
E-TURN 52
Diameter
1.125" (30mm)
1.375" (35 mm)
1.575" (40 mm)
2.0" (50,8 mm)
Thickness
.080" (2.0 mm)
.080" (2.0 mm)
.080" (2.0 mm)
.080" (2.0 mm)
Bending direction
RH or LH
convertible
RH or LH
convertible
RH or LH
convertible
RH or LH
convertible
Axes
12 - 13
14 - 15
14 - 15
14 - 15
X Accuracy
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
Y Accuracy
± 0.05°
± 0.05°
± 0.05°
± 0.05°
Z Accuracy
± 0.05°
± 0.05°
± 0.05°
± 0.05°
Clamp edge
80.0" (2,030 mm)
72.0" (1,840 mm)
72.0" (1,840 mm)
72.0" (1,840 mm)
Mandrel extractor
143.0" (3,640 mm)
143.0" (3,640 mm)
143.0" (3,640 mm)
143.0" (3,640 mm)
Max. installed power
22 kW
25 kW
25 kW
25 kW
Average drawn power
2.5 kW
4 kW
4 kW
5 kW
Noise level
65 dB(A)
65 dB(A)
65 dB(A)
65 dB(A)
Weight
7716 lb (3,500 Kg)
10582 lb (4,800 Kg)
10582 lb (4,800 Kg)
12125 lb (5,500 kg)

E-TURN32

E-TURN35 | E-TURN40 | E-TURN52
